1/1 DPAL depalletizer

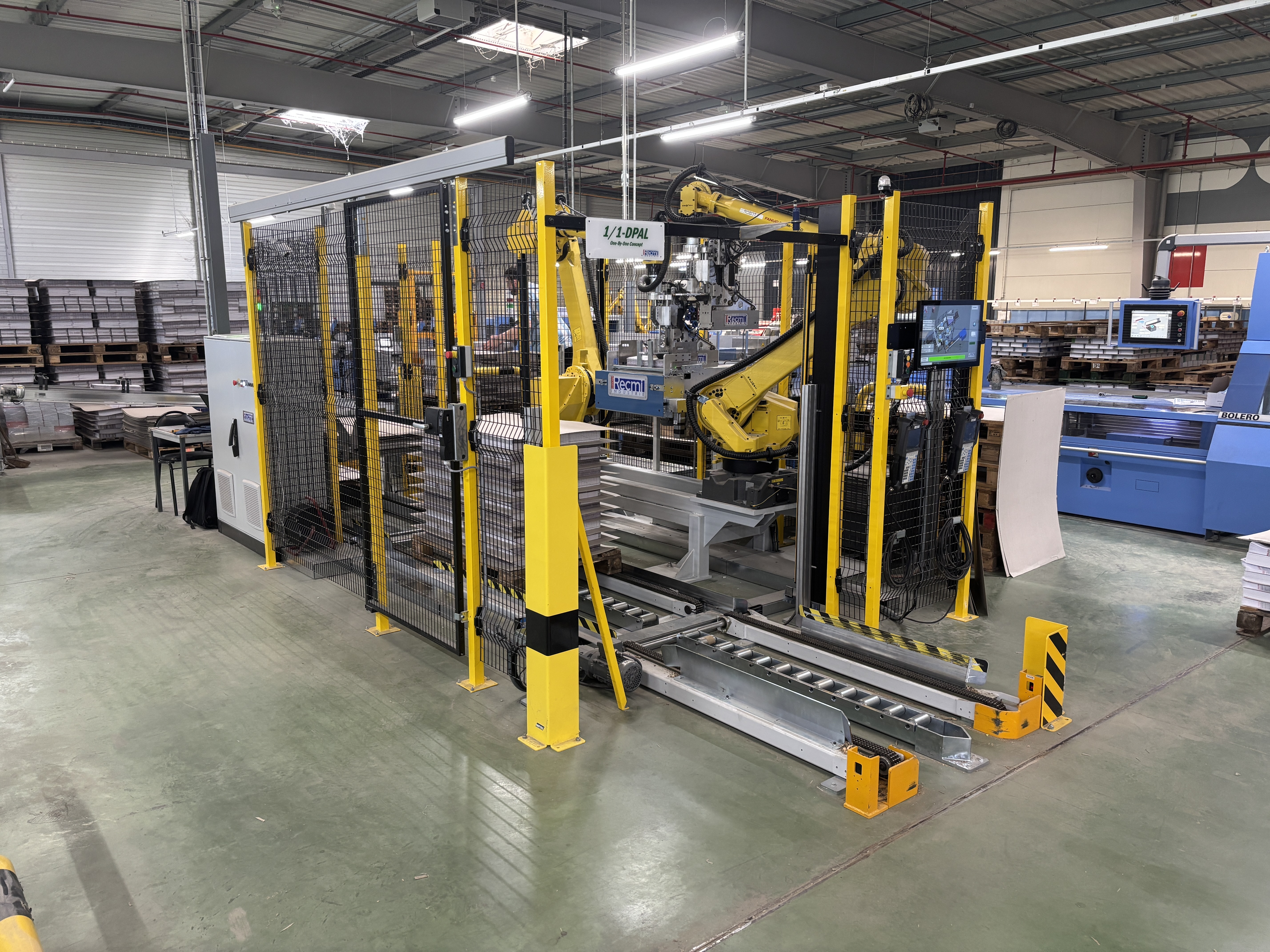

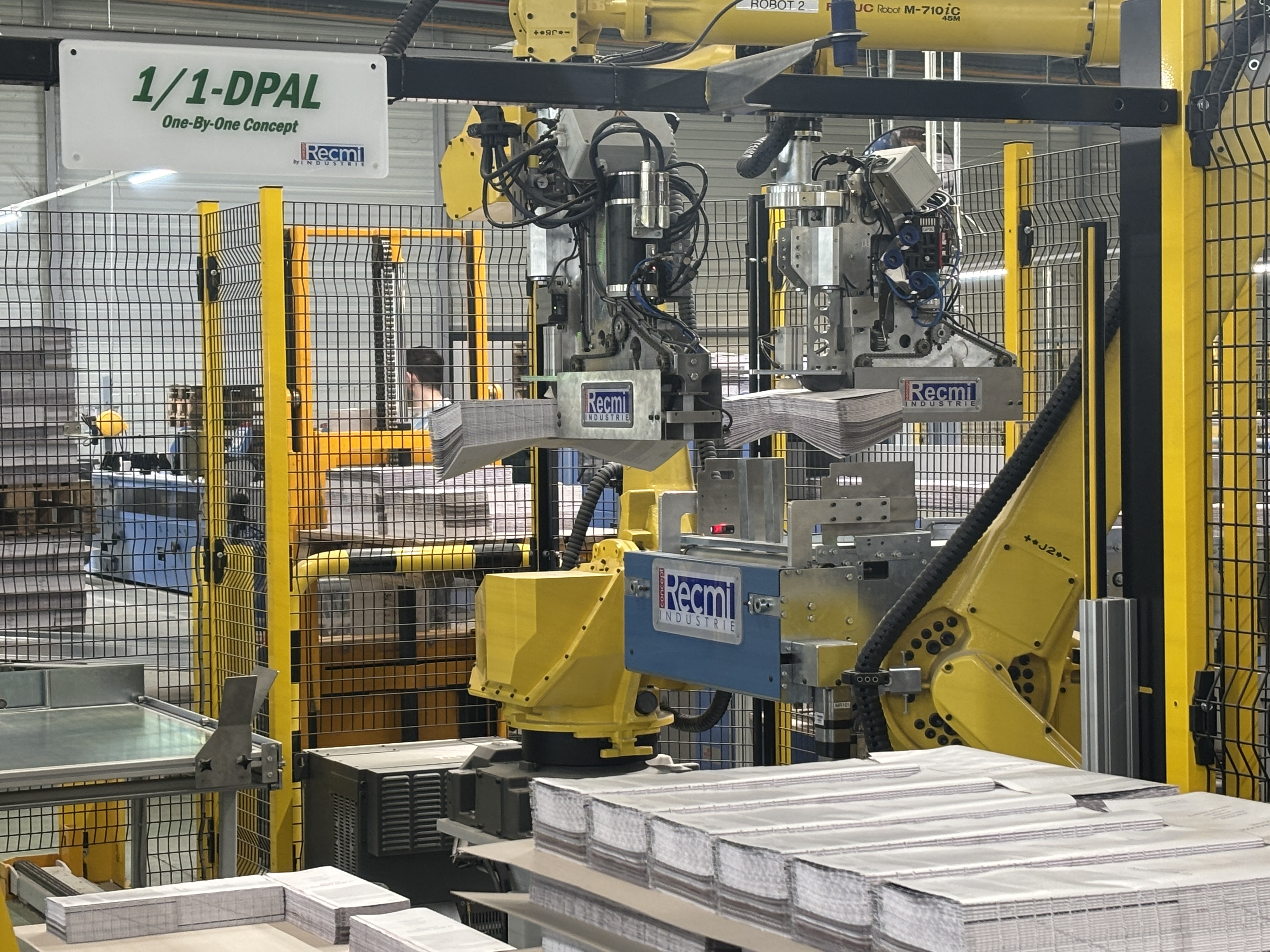

The 1/1-DPAL is a robotic depalletizer, which uses RECMI Industrie One-By-One technology. Stacks are depalletized 1 by 1 with a 6-axis robot (3D motion technology) according to the position and shape of each stack on the pallet at the finishing line infeed, wider range of printed products, high productivity.
The 1/1-DPAL includes
- 1 x 6-axis robot
- 1 pallet conveying line
- 1 x 4 side-jogger
- 1 pile conveying line
- Interleaving magazine
- Storage for empty pallet
- Tactile operator interface
- RecmiPal depalletization software
- RecmiPilot monitoring software
Documentation depalettiseur - EN
Technical specifications
- Min/max product length :
- 170 mm - 430 mm
- Min/max product width :
- 100 mm - 320 mm
- Min/max product height :
- 50mm-150m (other, please enquire)
- Weight of the stack, max :
- 10 Kg
- Pallet type :
- 800 x 1200 mm (other format, please enquire)
- Pallet height, max. :
- 1200mm
- Number of stacks/hour, max (depalletizing of joined or non-joined stacks):
- 700 stacks/hour (according to configuration and products)
- Safety :
- Protective mesh enclosures, virtual safety fencing, compliance with Level 4 CE standards
- Telemaintenance :
- Option
